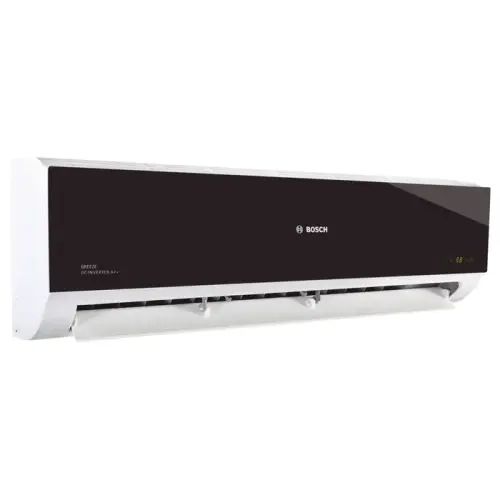

BOSCH
B1ZMIA12505
Power supply
Ph-V-Hz
220-240V,1Ph,50Hz
Rated Cooling
Capacity
Btu/h
12000（8643~13477)
Cooling Power input
W
1406（130~1274)
Cooling Current
A
6.11（0.6~5.4)
Rated Heating
Capacity
Btu/h
13000（4752~15142)
Heating Power input
W
1209（150~1282)
Heating Current
A
5.25（0.6~5.5)
Seasonal Cooling
Pdesignc
kW
3.5
SEER
W/W
6.1
Energy Efficiency Class
A++
Heating(Average )
Pdesignh
kW
2.6
SCOP
W/W
4.0
Energy Efficiency Class
A+
Tbiv
℃
-7
Tol
℃
-15
Moisture Removal
L/h
/
Max. input consumption
W
2300
Max. current
A
10
Starting current
A
—-
Compressor
Model
KSK103D33UEZ3
Type
/
Brand
GMCC
Capacity
Btu/h
3250
Input
W
834
Rated current(RLA)
A
5,7
Locked rotor Amp(LRA)
A
—-
Thermal protector
—-
Thermal protector position
—-
Capacitor
uF
—-
Refrigerant oil/oil charge
ml
ESTEL OIL VG74/310ml
Indoor fan motor
Model
YKFG-13-4-38L-4
Output
W
40.0
Capacitor
uF
1.2
Speed(Hi/Mi/Lo)
r/min
1150/950/750
Indoor coil
a.Number of rows
2
b.Tube pitch(a)x row pitch(b)
mm
19.5×11.6
c.Fin spacing
mm
1.2
d.Fin type (code)
Hydrophilic aluminum
e.Tube outside dia.and type
mm
Ф5,/
f.Coil length x height x width
mm
595x78x23.2+595x117x23.2+595x78x23.2
g.Number of circuits
4
Indoor air flow (Hi/Mi/Lo)
m3/h
540/430/314
Indoor sound pressure level (Hi/Mi/Lo/Si)
dB(A)
41/36/26.5
Indoor sound power level (Hi)
dB(A)
52
Indoor unit
Dimension(W*D*H)
mm
805x194x285
Packing (W*D*H)
mm
870x270x365
Net/Gross weight
Kg
7.6/9.8
Outdoor fan motor
Model
ZKFN-20-8-1
Output
W
55
Capacitor
uF
―
Speed
r/min
800/600
Outdoor coil
a.Number of rows
1
b.Tube pitch(a)x row pitch(b)
mm
21×22
c.Fin spacing
mm
1.3
d.Fin type (code)
Hydrophilic aluminum
e.Tube outside dia.and type
mm
Φ7,Inner groove tube
f.Coil length x height x width
mm
740x462x22
g.Number of circuits
2
Outdoor air flow
m3/h
1800
Outdoor sound pressure level
dB(A)
56
Outdoor sound power level
dB(A)
62
Outdoor unit
Dimension(W*D*H)
mm
720x270x495
Packing (W*D*H)
mm
835x300x540
Net/Gross weight
Kg
22.8/24.7
Refrigerant
Type
R32
GWP
2088
Charged quantity
Kg
0.7
Design pressure
MPa
4.2/1.5
Refrigerant piping
Liquid side/ Gas side
mm(inch)
Φ6.35(1/4″)/Φ9.52/(3/8″)
Max. refrigerant pipe length
m
25
Max. difference in level
m
10
Connection wiring
5*1.5(Optional)
Plug type
Thermostat type
Remote Control
Operation temperature
Indoor(cooling/ heating)
℃
17～32/0～30
Outdoor(cooling/heating)
℃
-15～50/-15～30
