Ürün Açıklaması
Rated Cooling Capacity Btu/h 18000（12800~20900)
Cooling Power input W 1318（587~1787)
Cooling Current A 5.73（2.81~7.90)
EER W/W 4.0
Rated Heating Capacity Btu/h 19000（8800~23100)
Heating Power input W 1500（943~1695)
Heating Current A 6.52（4.26~7.50)
COP 3.71
Seasonal Cooling Pdesignc kW 5.3
SEER W/W 8.5
Energy Efficiency Class A+++
Heating(Average ) Pdesignh kW 4.3
SCOP W/W 4.3
Energy Efficiency Class A+
Tbiv ℃ -7
Heating(Warmer ) Pdesignh kW 4.3
SCOP W/W 5.4
Energy Efficiency Class A+++
Tbiv ℃ 2
Tol ℃ -15
Moisture Removal L/h /
Max. input consumption W 2800
Max. current A 13.0
Starting current A 0
Compressor Model KSN140D58UFZ
Type ROTARY
Brand GMCC
Capacity W 4315
Input W 1090
Rated current(RLA) A 7.15
Locked rotor Amp(LRA) A /
Thermal protector /
Thermal protector position NA
Capacitor μF /
Refrigerant oil/oil charge ml VG74/440

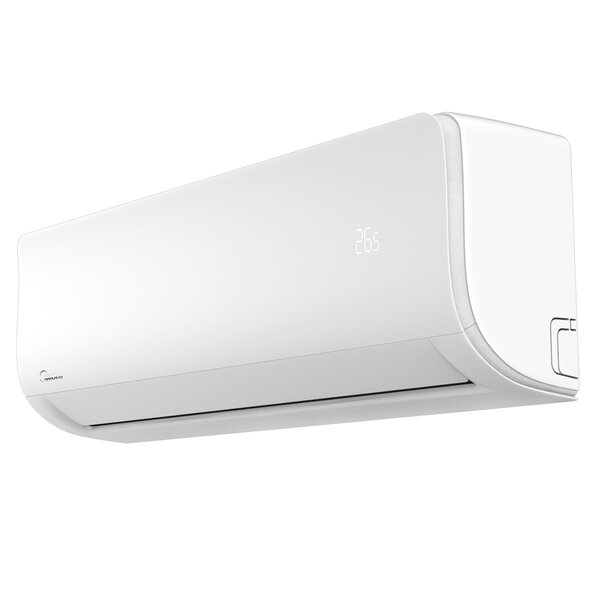

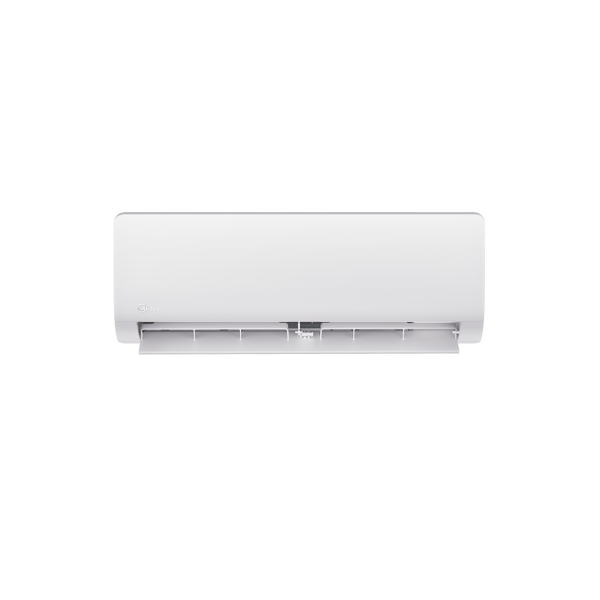

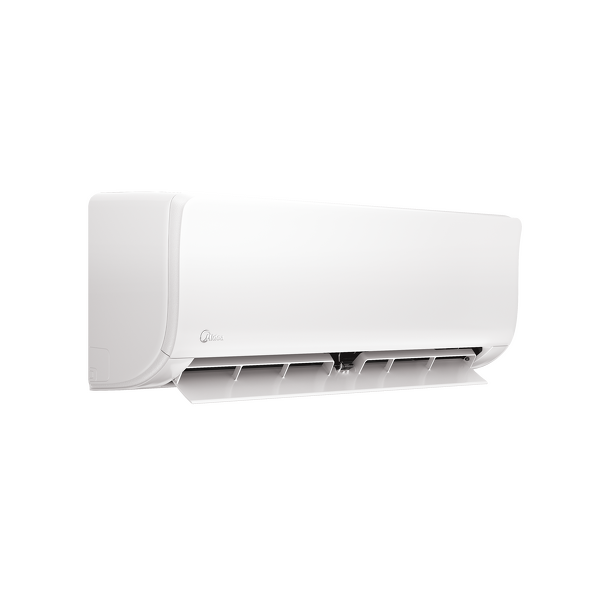

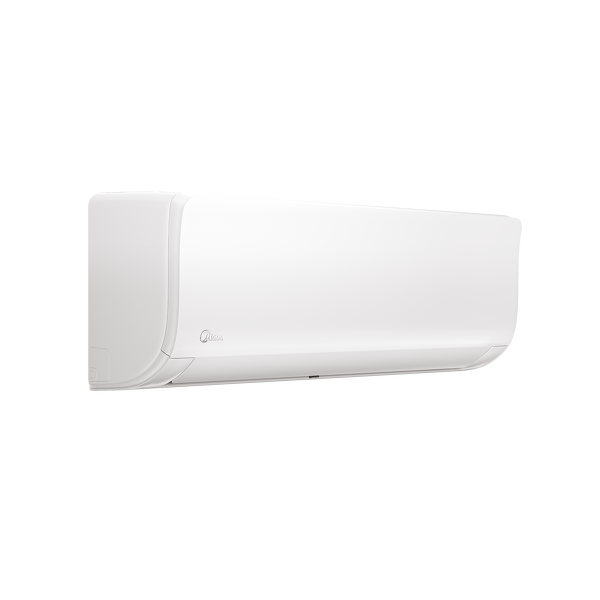

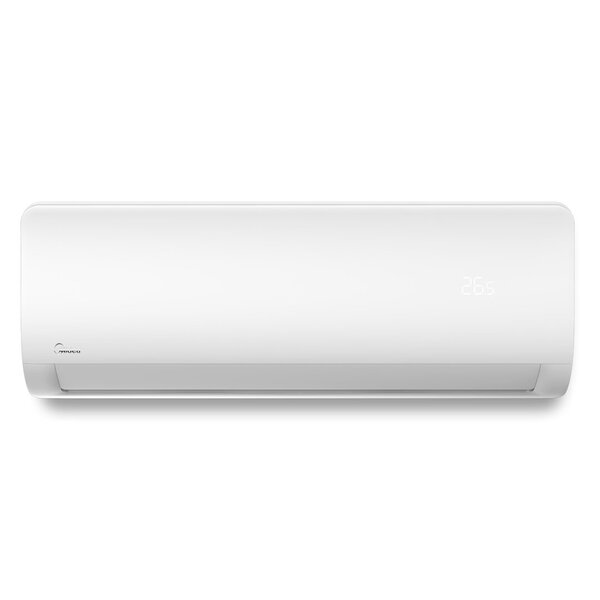

Indoor fan motor Model ZKFP-30-8-3
Old Model
Input W 36.0
Capacitor uF /
Speed(Hi/Mi/Lo) r/min 1050/882/714
Indoor coil a.Number of rows 2
b.Tube pitch(a)x row pitch(b) mm 21×13.37
c.Fin spacing mm 1.3
d.Fin type (code) Hydrophilic aluminum
e.Tube outside dia.and type mm Φ7,Inner groove tube
f.Coil length x height x width mm 760x84x26.74+760x126x26.74+760x126xx26.74
g.Number of circuits 4
Indoor air flow (Hi/Mi/Lo) m3/h 685/580/400
Indoor noise level (Hi/Mi/Lo/Si) dB(A) 41/35/23/22
Indoor sound power level dB(A) 59
Indoor unit Dimension(W*D*H) mm 965x239x319
Packing (W*D*H) mm 1045x400x325
Net/Gross weight Kg 12.3/16.4

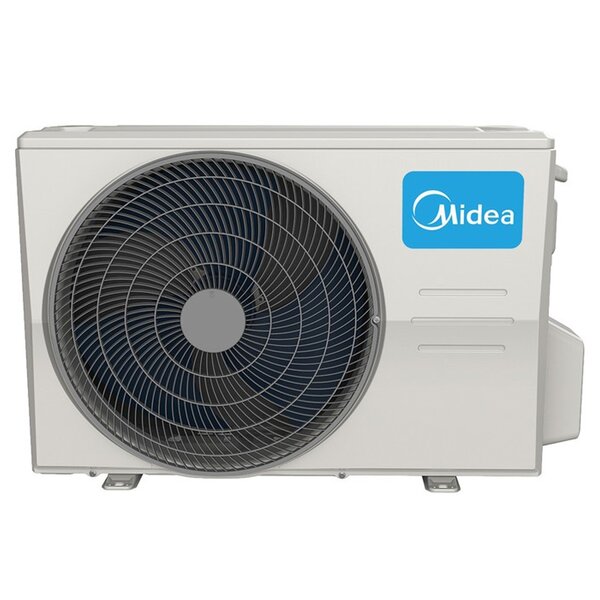

Outdoor fan motor Model ZKFN-80-8-3
Input W /
Capacitor uF /
Speed r/min 700/530
Outdoor coil a.Number of rows 1.6
b.Tube pitch(a)x row pitch(b) mm 21×13.37
c.Fin spacing mm 1.3
d.Fin type (code) Hydrophilic aluminum
e.Tube outside dia.and type mm Ф7,Inner groove tube
f.Coil length x height x width mm 900*44*609
g.Number of circuits 5
Outdoor air flow m3/h 3500
Outdoor sound pressure level dB(A) 56
Outdoor sound power level dB(A) 65

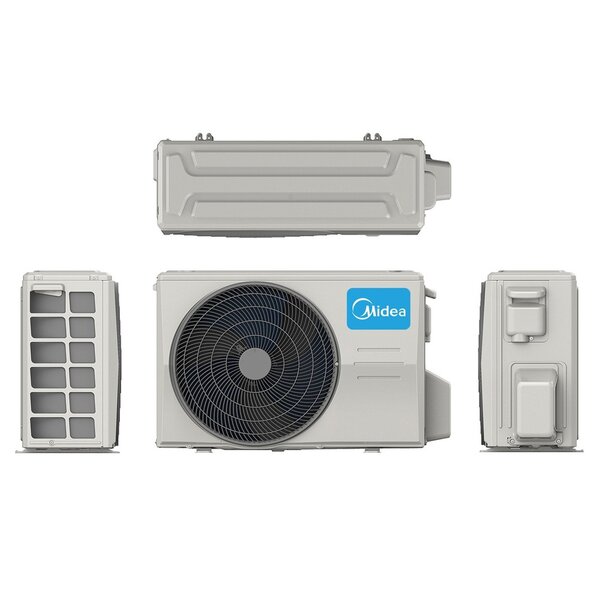

Outdoor unit Dimension(W*D*H) mm 890x342x673
Packing (W*D*H) mm 995x398x740
Net/Gross weight Kg 38.8/41.9
Refrigerant Type R32
GWP 675
Charged quantity Kg 1.1
Design pressure MPa 4.3/1.7
Refrigerant piping Liquid side/ Gas side mm(inch) 6.35mm(1/4in)/12.7mm(1/2in)
Max. refrigerant pipe length m 30
Max. difference in level m 20
Connection wiring 1.5×5//
Thermostat type Remote Control
Room temperature Indoor(cooling/ heating) ℃ 16～32/0～30
Outdoor(cooling/heating) ℃ -15～50/-20～24
Application area (Cooling Standard) m2 24.0～35.0
