Açıklama
Ürün Açıklaması
A++/A+++

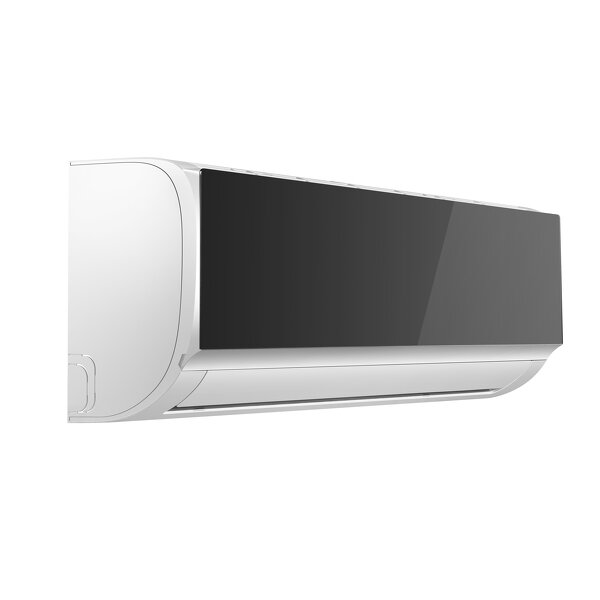

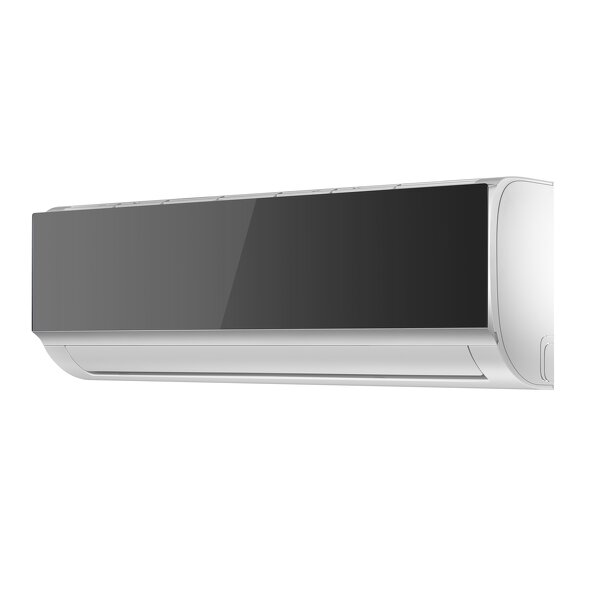

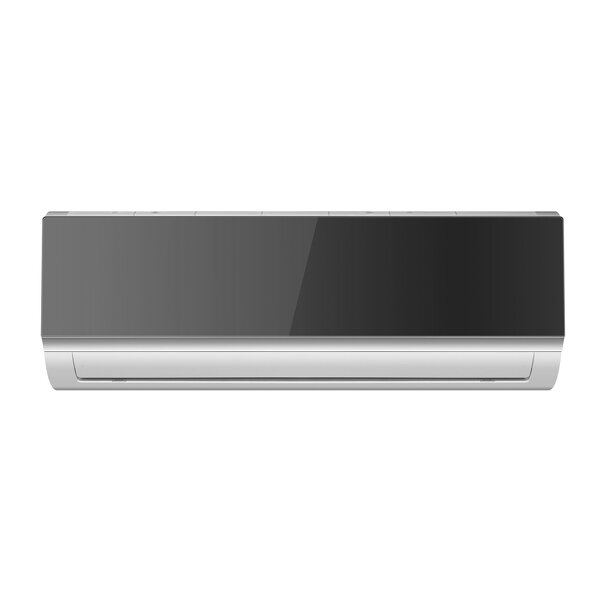

24000 BTU DC İnverter Klima Siyah Renk
Power supply Ph-V-Hz 220-240V,1Ph,50Hz
Rated Cooling Capacity Btu/h 24000（7100~27000)
Cooling Power input W 2600（420~3150)
Cooling Current A 11.5（1.8~13.8)
Rated Heating Capacity Btu/h 25000（5500~27000)
Heating Power input W 2400（300~2750)
Heating Current A 11（1.3~12.2)
Seasonal Cooling Pdesignc kW 7.0
SEER W/W 6.1
Energy Efficiency Class A++
Heating(Average ) Pdesignh kW 4.8
SCOP W/W 4.0
Energy Efficiency Class A+
Tbiv ℃ -7
Tol ℃ -15
Moisture Removal L/h /
Max. input consumption W 3500
Max. current A 15.5
Starting current A 0
Compressor Model KTM240D43UKT
Type ROTARY
Brand GMCC
Capacity Btu/h 7600
Input W 2045
Rated current(RLA) A 9
Locked rotor Amp(LRA) A /
Thermal protector /
Thermal protector position /
Capacitor uF /
Refrigerant oil/oil charge ml VG74/620
Indoor fan motor Model ZKFP-58-8-1-5
Output W 58.0
Capacitor uF /
Speed(Hi/Mi/Lo) r/min 1130 / 900 / 800
Indoor coil a.Number of rows 2.0
b.Tube pitch(a)x row pitch(b) mm 21×13.37
c.Fin spacing mm 1.3
d.Fin type (code) Hydrophilic aluminum
e.Tube outside dia.and type mm Φ7,Inner groove tube
f.Coil length x height x width mm 780x210x26.74+780x105x26.74
g.Number of circuits 4
Indoor air flow (Hi/Mi/Lo) m3/h 980/817/662
Indoor sound pressure level (Hi/Mi/Lo/Si) dB(A) 45/40.5/36
Indoor sound power level (Hi) dB(A) 59
Indoor unit Dimension(W*D*H) mm 1040x220x327
Packing (W*D*H) mm 1120x405x315
Net/Gross weight Kg 12.3/15.8
Outdoor fan motor Model ZKFN-80-8-3
Output W /
Capacitor uF /
Speed r/min 830/700/550
Outdoor coil a.Number of rows 1.6
b.Tube pitch(a)x row pitch(b) mm 21×13.37
c.Fin spacing mm 1.3
d.Fin type (code) Hydrophilic aluminum
e.Tube outside dia.and type mm Ф7,Inner groove tube
f.Coil length x height x width mm 900*44*609
g.Number of circuits 5
Outdoor air flow m3/h 3500
Outdoor sound pressure level dB(A) 59
Outdoor sound power level dB(A) 67
Outdoor unit Dimension(W*D*H) mm 890x342x673
Packing (W*D*H) mm 995x398x740
Net/Gross weight Kg 42.9/45.9
Refrigerant Type R32
GWP /
Charged quantity Kg 1.42
Design pressure MPa 4.3/1.7
Refrigerant piping Liquid side/ Gas side mm(inch) 9.52mm(3/8in)/15.9mm(5/8in)
Max. refrigerant pipe length m 50
Max. difference in level m 25
Connection wiring 2.5×5//
Plug type //no-plug
Thermostat type Remote Control
Operation temperature Indoor(cooling/ heating) ℃ 17～32/0～30
Outdoor(cooling/heating) ℃ -15～50/-15～30
Application area minimum-maximum m2 32～47
Qty’per 20’ /40’ /40’HQ 66/137/156
